Gearbox Rebuild Kit ( A Series Remote 4 Synchro ))
GW-GBRKAR4


  Gearboxes
  New Parts
     Kits
     Bearings
     Upgrades
     Gears
     Automatic
  Used Parts
  Tools
  Bottletop Racing

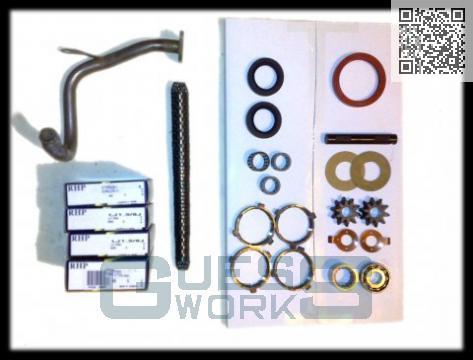

Everything you need to completely overhaul your Classic A Series Remote 4 Synchro gearbox and differential.

Kit includes (part numbers provided as a guide)

  • 13H2934 x 1 - CLUTCH OIL SEAL (ORANGE)
  • 13H7848 x 1 - Idler gear bearing
  • 13H577 x 1 - Remote Change selector seal
  • 88G396 x 1 - A series layshaft needle roller bearing
  • 22G2033 x 4 - BAULK RING
  • 22G2262 x 6 - SYNCHRO SPRING
  • AAU1365 x 1 - ROLLER DOUBLE FOR MAINSHAFT IN GEARBOX
  • AAU8424 x 1 - ROLLER 1st MOTION SHAFT PILOT TO CLUTCH CASE
  • ADU5738 x 2 - DIFF OUTPUT SHAFT OIL SEAL
  • ADU7619 x 1 - ROLLER SINGLE TYPE FOR HOLDING 1ST MOTION SHAFT
  • AHU1856 x 2 - DIFFERENTIAL ROLLER
  • AJM804B x 1 - GEARBOX GASKET SET
  • BLS107 x 6 - SYNCHRO BALLS
  • BTA101 x 2 - DIFFERENTIAL THRUST WASHER STANDARD SIZE
  • C-22A1738 x 1 - LAYSHAFT A Series performance
  • C-AHT54 x 1 - OIL PIPE HITECH CENTRAL PICKUP GEARBOX
  • C-BTA164 x 1 - DIFFERENTIAL PIN WITH MOLYBDENUM COATING
  • CCN110 x 1 - PILOT BEARING CIRCLIP
  • CHM141 x 2 - LAYSHAFT LARGE ROLLER
  • CHM172 x 1 - 3RD MOTION NOSE BEARING
  • DAM5071 x 2 - WASHER THRUST FOR PLANET GEAR
  • DAM6624 x 2 - PLANET GEAR
  • GHF221 x 1 - 1/4" UNF Nyloc nut
    • £ 325.00
      (£ 390.00)
